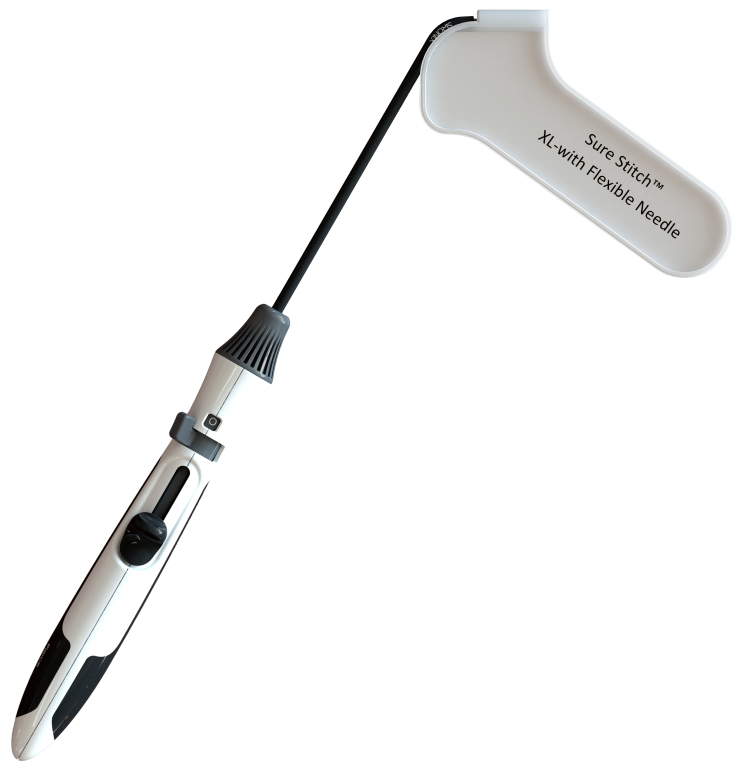

All-Inside Meniscus Repair
SureStitch
XL
Flex. Access. Restore. SureStitch XL builds on the legacy of SureStitch with enhanced strength, flexibility and precision, offering surgeons a more advanced solution for meniscal repair.
SureStitch
Why SureStitch XL
Stronger implant, further reach
Flexible Needle
The XL needle can bend up to 45 degrees in any direction for enhanced maneuverability in tight spaces, reaching previously inaccessible zones of the meniscus.
Universal Bender
One bender shapes the needle up to 45° in any desired direction — left, right and up approaches are covered by a single implant reference, reducing inventory.
Safety Knob
The safety knob prevents misfiring, and the adjustable depth control sheath prevents over-insertion — deployment happens only where and when it is intended.
Audible and Visual Confirmation
Sequential implant selection is confirmed visually, and an audible click confirms implant deployment — the surgeon knows the state of the device at every step.
XL versus SureStitch
Measured, not marketed
Comparative bench figures for the XL implant against the standard SureStitch construct. Data on file.
+52%
Higher pull-out strength — 110.05 N versus 72.21 N
-51%
Lower elongation after 1000 cycles — 0.37 mm versus 0.78 mm
45
Degrees of needle bend, in any direction
Deployment workflow
Bend. Pierce. Turn. Fire.
An ergonomic design that enables one-handed use, with a short and repeatable deployment sequence.
01
Bend
The universal bender shapes the XL needle up to 45° in the direction the approach requires.
02
Pierce
The needle is advanced through the tear, with the adjustable depth control sheath set to prevent over-insertion.
03
Turn
The safety knob is turned to release the mechanism — until then, misfiring is prevented.
04
Fire
The implant is deployed, confirmed by an audible click; sequential selection keeps the second implant ready.
Ordering information
Reference codes
| Code | Description |
|---|---|
| S29-1804-TQ | Meniscus Repair Implant XL |
Associated instruments
| Code | Description |
|---|---|
| S29-1700-TQ | Sure Stitch open cannula |
| S29-1701-TQ | Sure Stitch suture cutter |
| S29-1702-TQ | Sure Stitch diamond rasp |
| S29-1703-TQ | Sure Stitch meniscus depth gauge |
Get in touch
Request the SureStitch™ XL brochure and IFU
Disclaimer: responsibility for administering products mentioned and interpretation of clinical data provided lies with the registered medical practitioner. For more information about products, please refer to the Instructions for Use (IFU) document. Reference: data on file.
