Orthopedics — Total Knee Replacement
The one and only 7 tangential radii knee implant in the world.
An advanced knee replacement system designed to address the anatomical, physiological and lifestyle needs of patients providing high flexion and ensuring patient satisfaction.
The system

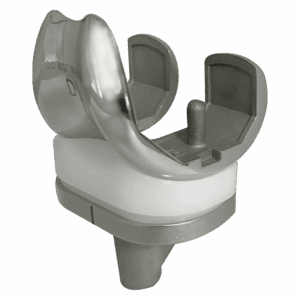

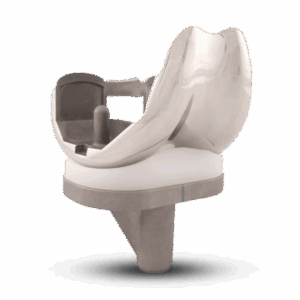

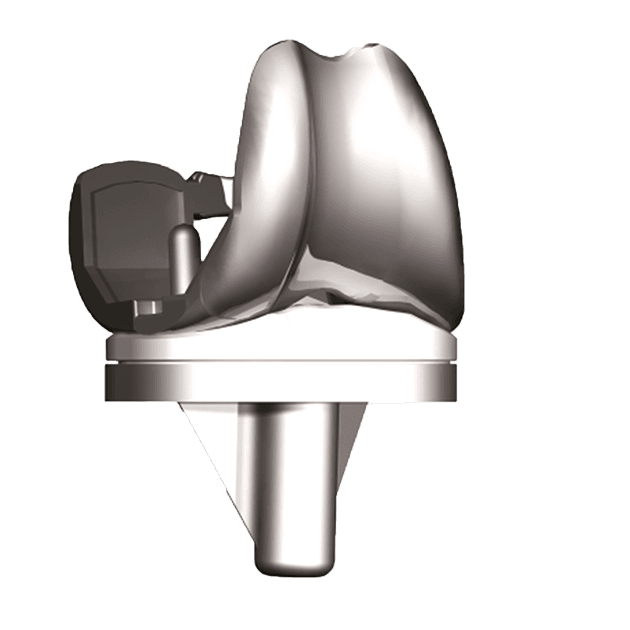

The Freedom Total Knee® System is the first USFDA-approved knee system with 7 tangential radii, resulting in excellent implant-to-bone fit. Developed using advanced design engineering technologies, it addresses the anatomical, physiological and lifestyle needs of today’s patients. The system’s unique design allows patients to achieve optimal high-flexion motion.
Compared to general knee replacement procedures, the Freedom Total Knee® System requires minimal bone cutting and enables a more conservative bone resection. Its intuitive design offers surgeons the freedom to customise size options to better fit the implants to the patient’s knee.
Design rationale
The Freedom femoral design is based on functional principles of progressive multi-radii patello-femoral and tibio-femoral contact areas.
01
Radii 1, 2 and 3 ensure optimized patella-femoral contact. Radii 4, 5, 6 and 7 control femoral rollback and flexion over a wide array of biomechanical requirements, from walking to climbing stairs.
02
7 radii along with a thin anterior flange and a 6-degree deep trochlear groove facilitate predictable patello-femoral tracking — helping to reduce anterior knee pain.
03
A multi-radii design gives predictable femoral rollback, allowing high flexion up to 155 degrees for various daily and social activities.
04
A modified post-cam mechanism allows rotation up to 15 degrees at deep flexion, preventing post-cam impingement and reducing wear and tear of the poly.
05
Freedom Knee concentrates load towards the centre of the poly at deep flexion, rather than at the condylar edges.
05
Freedom Knee concentrates load towards the centre of the poly at deep flexion, rather than at the condylar edges.
Indication
Arthritis is an inflammation of one or more of your joints. Pain, swelling and stiffness are the primary symptoms of arthritis. Any joint in the body may be affected by the disease, but it is particularly common in the knee.
Knee replacement surgery is considered after all other conservative options have failed to provide any relief. The procedure involves removing the damaged knee and replacing it with an artificial one.
Product details
PRODUCT : Freedom Total Knee® System
CATEGORY : Orthopedics · total knee replacement
FEMORAL GEOMETRY : 7 tangential radii · 6° deep trochlear groove
FLEXION : High flexion up to 155°
COMPONENTS : CR and PS femurs (L & R) · metal-backed tibial trays and inserts · all-poly tibia
MATERIALS : Cobalt chrome · ram-extruded UHMWPE, GUR 1020
FIXATION : Cemented use only
REGULATORY : USFDA-approved
