Arthroscopy — Knotless suture anchor
Viplok®

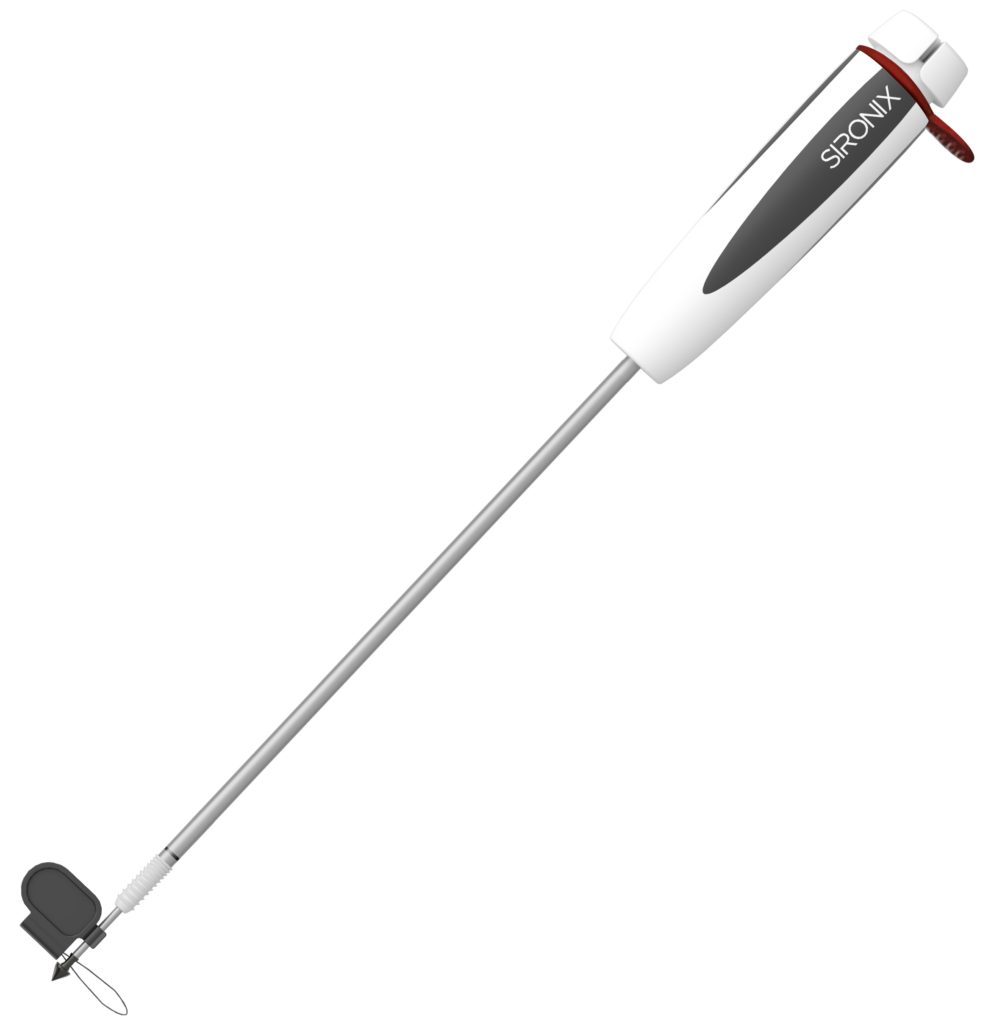

Knotless PEEK and β-TCP anchors with PEEK or titanium tip. An advanced eyelet system allows passage of 6–8 sutures/tapes and provides tactile feedback while tensioning.
8
Sutures / tapes, up to
3
Size variants
4
Published clinical studies
01 — Design features
Engineered for efficiency
An advanced eyelet system, five configuration axes, one anchor platform.
01
Tactile suture tensioning
Hand-controlled tensioning provides precise control over tissue tension.
02
Size variants
Shoulder instability — 2.8 mm. Rotator cuff repair — 4.8 mm / 5.5 mm.
03
Thread type
Available in wedge and screw thread configurations.
04
Material options
Available in PEEK and β-TCP — tap-in and screw-in variants.
05
Versatile tip options
Self-tapping titanium tip accommodates 6–8 fiber wires/tapes for robust fixation; PEEK tip supports 2–4 fiber wires/tapes depending on anchor size.
06
Knotless construct
No knot tying at the repair site — the eyelet system carries and locks the suture, shortening the arthroscopic sequence.
02 — Available options
Configuration matrix
| Size | Thread type | Anchor | Tip |
|---|---|---|---|
| 2.8 mm | Wedge | PEEK | PEEK |
| 4.8 mm | Screw / Wedge | β-TCP · PEEK | PEEK · Titanium (self tap) |
| 5.5 mm | Screw / Wedge | β-TCP · PEEK | Titanium (self tap) · PEEK |
Scientific evidence
Published clinical studies
Dr. KR Prathap Kumar and Dr. Vineeth Gopalannair
Clinical and patient reported outcomes after treatment of Rotator Cuff Tears: A Retrospective, Observational Study
Dr. Vivek Pandey and Dr. Sandesh Madi
A Retrospective Study on the Efficacy, Safety, and Clinical and Radiological Outcomes of PEEK Anchors (Ceptre® Knotted Suture Anchor and Viplok® Knotless Anchor) in the Treatment of Rotator Cuff Repairs
Dr. Puthumanapully Vinod Kumar, Dr. Subin Sugath and Dr. Vijay Mohan
Assessing clinical and patient reported outcomes of Sironix suture anchors in rotator cuff and Bankart repair surgeries
Dr. K. Vijayaraj and Dr. V. Rathika
A multicentre, retrospective and observational study to evaluate safety and functional outcomes of arthroscopic shoulder ligament repair using Sironix suture anchor
04 — Ordering information
Reference codes
| Code | Description |
|---|---|
| S33-2803-K | Knotless PEEK Wedge Anchor — 2.8 mm with PEEK tip |
| S33-5506-K | Knotless PEEK Screw Anchor — 5.5 mm with PEEK tip |
| S33-5507-K | Knotless PEEK Wedge Anchor — 5.5 mm with PEEK tip |
| S33-5508-K | Knotless PEEK Screw Anchor — 5.5 mm with titanium self-punch tip |
| S33-5509-K | Knotless PEEK Wedge Anchor — 5.5 mm with titanium self-punch tip |
| S33-5506-B | Knotless PLDLA+β-TCP Screw Anchor — 5.5 mm with PEEK tip |
| S33-5507-B | Knotless PLDLA+β-TCP Wedge Anchor — 5.5 mm with PEEK tip |
| S33-5508-B | Knotless PLDLA+β-TCP Screw Anchor — 5.5 mm with titanium self-punch tip |
| S33-5509-B | Knotless PLDLA+β-TCP Wedge Anchor — 5.5 mm with titanium self-punch tip |
Associated instruments
| Code | Description |
|---|---|
| S45-0075-LU | Universal guiding cannula |
| S45-0028-DU | Drill — 2.8 mm anchor |
| S45-1148-LU | Straight awl 4.8 mm · straight tap 4.8 mm |
| S45-1155-LU | Straight awl 5.5 mm · straight tap 5.5 mm |
Get in touch
Request the Viplok® brochure and IFU
Disclaimer: responsibility for administering products mentioned and interpretation of clinical data provided lies with the registered medical practitioner. For more information about products, please refer to the Instructions for Use (IFU) document. Reference: data on file.
