Arthroscopy — Graft fixation

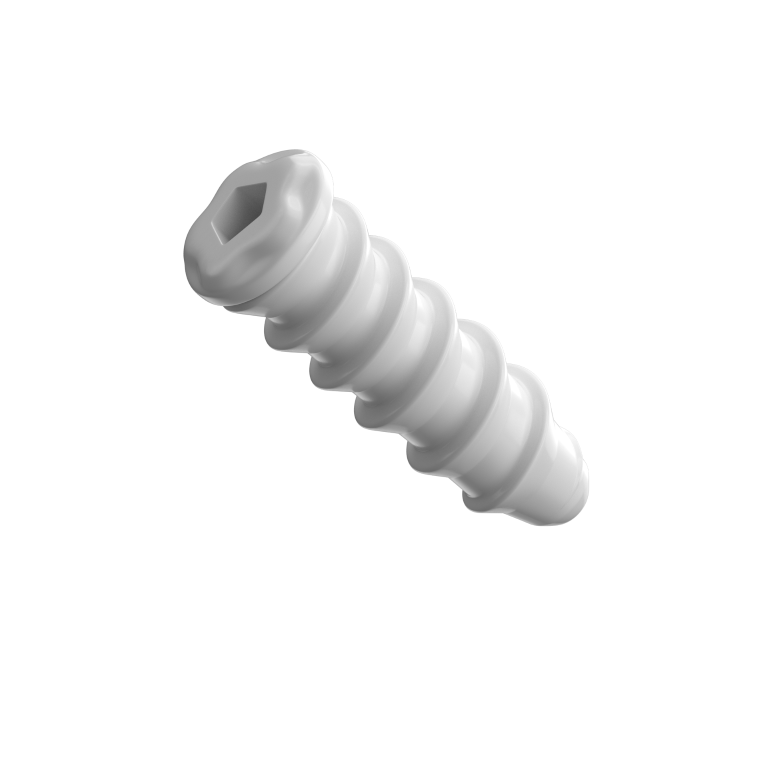

Helysis®
Interference screw in β-TCP + PLDLA, PEEK and titanium — engineered for smooth insertion, higher torque and stronger cortical hold during cruciate ligament reconstruction.
6
to 11 mm diameters
20
to 35 mm lengths
3
Materials
01 — Design features
Cannulation, thread and pitch, reconsidered
Wider cannulation
Accommodates thicker, more rigid guidewires for precise screw placement along the desired axis.
More threads for stronger fixation
Additional threads near the head ensure a stronger hold in cortical bone.
Blunt thread and tapered tip
Facilitates smooth insertion while minimizing chances of graft laceration, and enhances bone graft purchase for optimal stability.
Variable pitch
Enables faster insertion and effectively pulls the graft into place, generating higher torque as each thread carves a new path for secure fixation.
02 — Available options
Diameters and lengths
Available lengths in mm, by screw diameter and material
| Screw | 6 mm | 7 mm | 8 mm | 9 mm | 10 mm | 11 mm |
|---|---|---|---|---|---|---|
| β-TCP | 20, 25 | 20, 25, 30 | 25, 30 | 25, 30, 35 | 25, 30, 35 | 30 |
| PEEK | 20, 25 | 20, 25, 35 | 25, 30 | 25, 30, 35 | 25, 30, 35 | 30 |
| Titanium | — | 20, 25, 30 | 25, 30 | 25, 30, 35 | 25, 30, 35 | 30, 35 |
Scientific evidence
Published clinical studies
Functional Outcomes of ACL Reconstruction Using Titanium Adjustable Loop Button and PLDLA-β-TCP Interference Screws: A Single-Center, Retrospective, Observational Study
Dr. Pulak Sharma, Dr. Anurag Baghel, Dr. Kumar Keshav, Dr. Amit Kumar, Dr. Abhishek Singh and Dr. Amarendra B. Singh
Functional outcomes after anterior cruciate ligament reconstruction procedure: A retrospective, observational study
Dr. Manjunath D. S. and Dr. Biju Mohan R.
An observational retrospective study on safety and functional outcomes of arthroscopic ACL reconstruction using Sironix suture button and interference screw
Dr. Murtuza Ahmed Mohammed, Dr. Apurve Parameswaran, Dr. Vinay Kishore Ponnala, Dr. Krishna Kiran Eachempati and Dr. Sunil Apsingi
Functional outcomes following arthroscopic ACL reconstruction with fixed loop suture button and interference screw: A retrospective observational study
Dr. Yathiraj B. R. and Dr. Srikant S. Iyengar
04 — Ordering information
Reference codes on request
| Item | Value |
|---|---|
| Product | Helysis® interference screw |
| Materials | β-TCP + PLDLA · PEEK · Titanium |
| Diameters | 6, 7, 8, 9, 10, 11 mm |
| Lengths | 20, 25, 30, 35 mm |
| Application | Cruciate ligament graft fixation |
Certification & documentation
Product literature on request
The full reference-code list for every diameter and length is available to healthcare professionals and professional buyers on request.
| Document | Format |
|---|---|
| Helysis® brochure | |
| Instructions for Use (IFU) |
Get in touch
Request the Helysis® brochure and IFU
Disclaimer: responsibility for administering products mentioned and interpretation of clinical data provided lies with the registered medical practitioner. For more information about products, please refer to the Instructions for Use (IFU) document. Reference: data on file.
